Description of the main parameters
- The hydraulic pallet truck is placed at the lowest point, the height is 85mm and 80mm

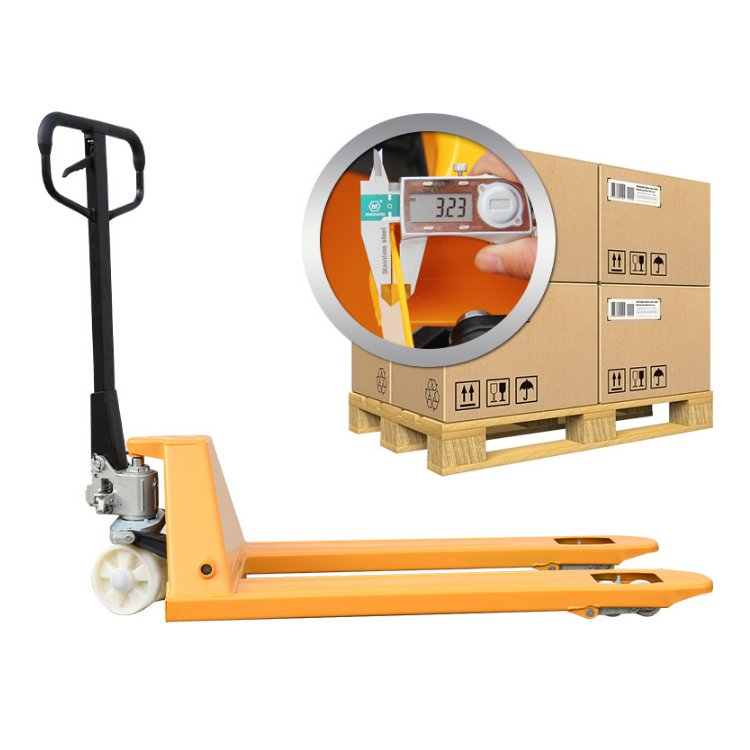

- The steel plate used in our transpallet is relatively thick, for example, 3T is 4mm
- The wheel material of the hydraulic hand pallet truck include nylon, polyurethane, rubber, etc
- The manual pallet jack body is divided into iron and stainless steel
- Special-function hydraulic hand pallet truck include paper tube trucks, lengthened, widened, scale pallet truck, etc.
The details of material handling equipment.
It is not easy to introduce all aspects of custom wood, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.
Good helper for material flow
The hand pallet truck is a small and convenient, flexible, heavy-duty, durable manual handling equipment. In addition to the function of consigning goods, the pallet truck has a hydraulic device between the chassis and the wheels to facilitate the lifting and landing of goods. The goods can be moved by dragging them. After arriving at the destination, the chassis is hydraulically lowered, and the goods also land on the ground, and the pallet truck can be easily pulled out. It saves the complicated process of manual handling and is a good helper for moving load in the workshop or storehouse.The pallet truck is the easiest, most effective and most common materials handling equipment.
Features of hand pallet truck
Our pallet jack hydraulic device is small in size, easy to operate and convenient to use.
The hydraulic pallet truck handle design conforms to the principle of ergonomics and has three functions: lifting, moving and putting down.

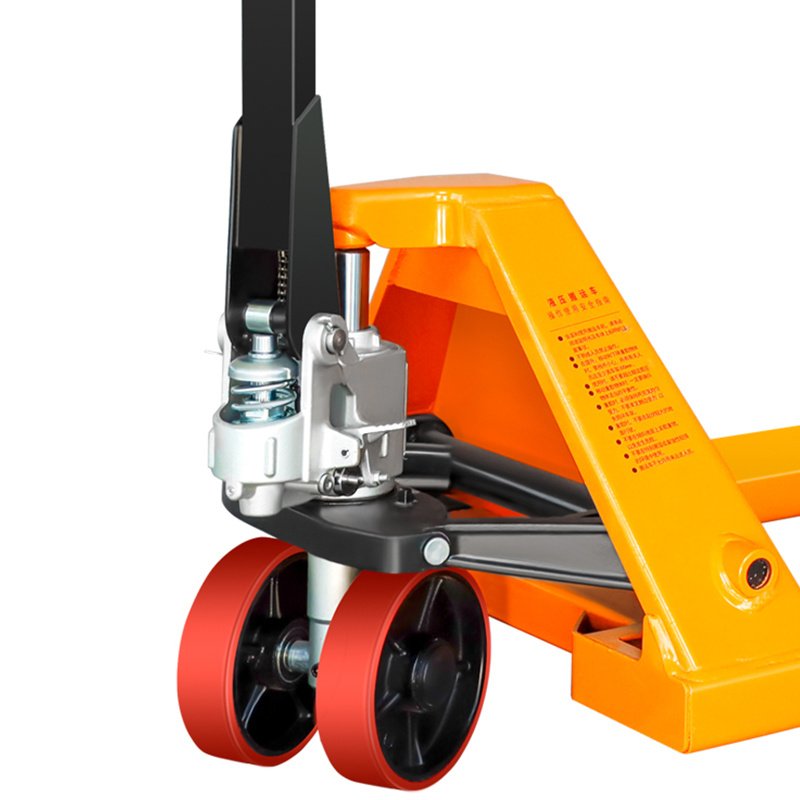

Integral casting oil cylinder, beautiful in appearance, strong and durable, chrome-plated piston rod, internal overflow valve provides overload protection, descending speed control, valve core adopts integral parts, reducing hand pallet truck maintenance costs.
The body of the hand pallet truck is welded with high-quality steel, and the fork has reinforcement ribs.
How to choose the pallet truck by wheels
There are many kinds of wheels, and the wheel material of the hydraulic hand pallet truck should be selected according to the condition of the working ground. If the ground condition is smooth, you can choose nylon wheels, because nylon wheels are relatively cheap, and have high hardness, high wear resistance, and less effort to pull, but they will make noise. If you don’t want to hurt the ground too much, for example, some factories are on the floor, it is best not to use nylon wheels, and polyurethane wheels should be used. Because nylon is too hard, polyurethane is relatively soft. But if there is a requirement for quietness, rubber wheels are the first choice, followed by polyurethane wheels.
All Your Materials Handling Equipment Needs Covered
Importance of Using Labor-Saving Equipment in the Workplace
Having labor-saving equipment in the workplace offers considerable advantages to safety, performance and efficiency. Here are some of the labor-saving benefits of pallet trucks for your operations:
Labor-saving equipment like pallet trucks helps improve employee safety in the workplace. In the absence of a forklift or pallet truck, if employees lift and carry product manually, they risk serious injury. Repeated bending and lifting activities put excessive stress on the muscles and joints and can lead to repetitive stress injuries, which are common causes of employee injuries and work absences. But, when pallet trucks do the heavy lifting, employees are more likely to remain healthy.
$10,000Employee injuries and associated absenteeism can cost companies greatly. U.S. industries spend around $1.5 billion a year on the direct costs of musculoskeletal injuries, such as insurance payments, and another $1.1 billion in indirect costs, such as lost productivity and the need to pay additional workers. But the use of labor-saving equipment like pallet trucks can help reduce these numbers and keep businesses profitable.
$4,300One of the great benefits of using labor-saving equipment is how pallet trucks improve efficiency in the workplace. Employees can spend countless hours transporting a couple pallets at a time by hand, but this method wastes time and exhausts workers, making them less alert and effective. Alternatively, pallet trucks can move heavy pallets quickly and easily, making employees more energetic and efficient in their work.
$1,000Why Choose ideahang's for All Your Pallet-Moving Needs?
Who are you going to trust for equipment that has a significant impact on productivity and your company’s bottom line? We carry all styles of hand pallet trucks, electric pallet trucks and platform/lift trucks to help you get your lifting jobs done right, done fast — and done safely. We’ve been providing durable and reliable pallet jacks and other time-saving and performance-boosting products since 2008.

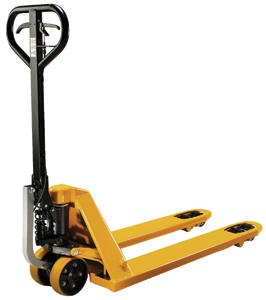

Manual pallet trucks
Manual pallet trucks are one of the most economical options for moving pallets indoors because they greatly reduce the amount of work and strain required to lift a load to a certain height. From low profile to high lift, standard or high capacity, wide fork or narrow fork, Cherry’s Material Handling has a great selection of manual pallet trucks available. Our manual units are simple to use and provide excellent lifting capacity at a price that fits just about any budget.

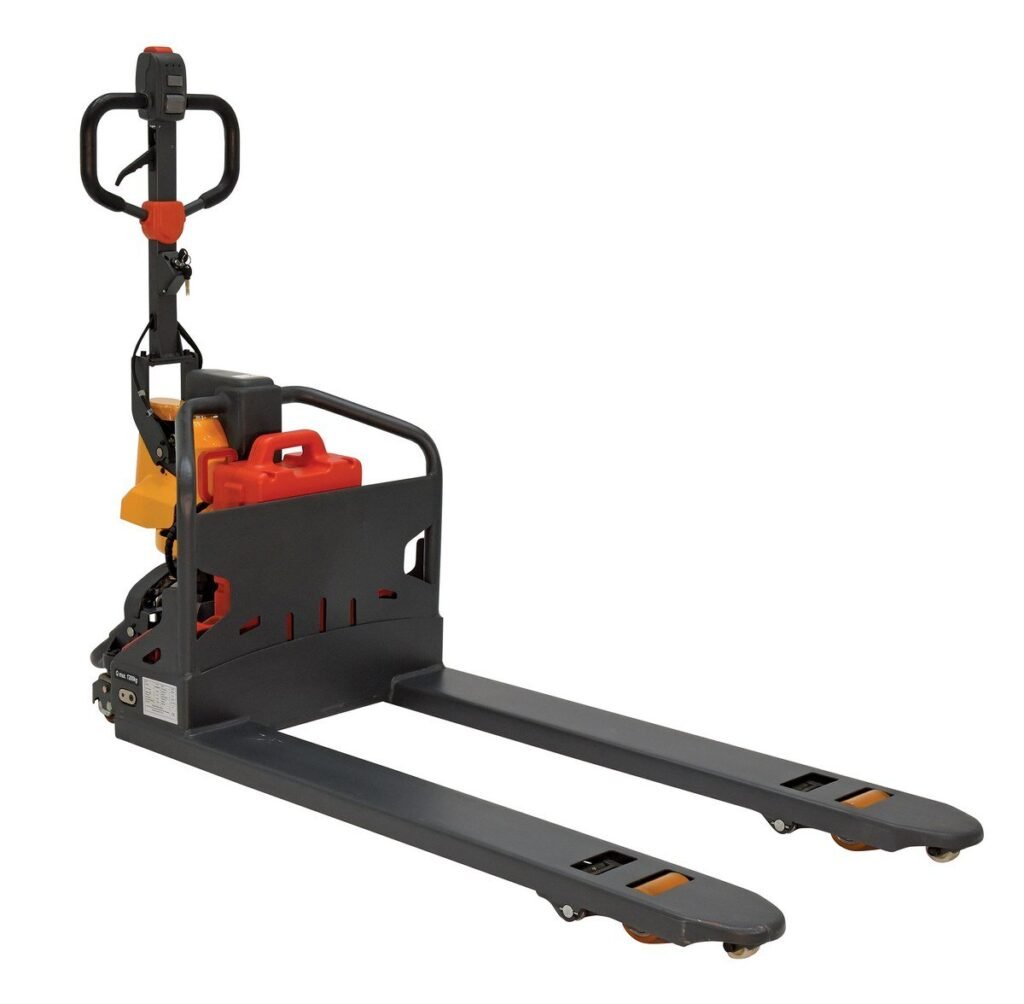

Electric pallet trucks
Electric pallet trucks deliver a healthy return on your investment thanks to their precision and automation capabilities — key features that can help you decrease rework, boost productivity and increase on-the-job safety. Cherry’s Industrial offers you light- to heavy-duty electric pallet truck models for your industrial facility or warehouse. Models in our inventory include the PTE33N-2745 standard electric pallet jack, E30 light-duty electric pallet truck and the top-of-the-line WPT45 electric pallet truck for superior loading and unloading.
Specialty pallet trucks
You want to use these amazing movers whenever a standard model won’t do, such as in close confines where a smaller footprint is required, or when handling delicate, oversized or unbalanced items. Several available products offer shorter fork lengths, wider bases and other unique features that make them suitable for specialty applications. You’ll find single-fork and adjustable-fork pallet trucks as well as roll and reel models in a range of sizes, capacities and configurations.
All-terrain pallet trucks
When the terrain gets tough, you need to get tougher material handling equipment. Our all-terrain pallet trucks feature innovations that roll over difficult terrains, such as pneumatic wheels, gas- and electric-powered engines and hydrostatic transmissions that make navigating rough terrain risk-free. Our all-terrain pallet trucks are the perfect movers for places like gravel pits, outdoor construction sites and other environments where reliable performance is key. These user-friendly off-road pallet jacks cut down training times and improve the performance of operators of all experience levels.
Custom Pallet Trucks
Don’t see what you need? Don’t worry — Cherry’s Material Handling can custom-design and engineer a pallet truck specifically for your needs. Whether we are modifying an existing manual-lift low-profile pallet truck or creating something new from the ground up, we work with you to find a solution for all your material handling challenges — no matter how unique the need. Visit our custom pallet trucks page to tell us about your requirements and submit a request for a quote online.
Let Our Industrial Pallet Trucks and Pallet Jacks Do the Heavy Lifting for You
If you’re in any warehousing or industrial industry, there’s going to be a time when you need to lift something heavy. To make these heavy lifting jobs easier and faster, you want to have the most dependable, safest and strongest hand pallet trucks, electric pallet trucks or platform/lift trucks available.We are a leading source of warehouse and production-related products for a broad range of businesses. We carry pallet jacks and other equipment designed to ergonomically assist workers in manual tasks to reduce common injuries to the back, knees, elbows and shoulders. Whether you’re in the market for electrically powered wheel electric trucks, hand pallet jacks with a wide fork width or any other material handling solution, the experts at Cherry’s Material Handling have the answers you require at an economical price.
All Your Materials Handling Equipment Needs Covered
How to choose hand pallet truck
Hand pallet trucks are divided into general hydraulic hand pallet trucks and special hand pallet trucks.
Special hydraulic pallet trucks include stainless manual hydraulic pallet trucks, low level hydraulic hand pallet trucks, heavy manual pallet trucks, widened/extended hand pallet trucks, paper tube manual pallet jacks, etc. Stainless manual hydraulic pallet trucks can be used in clean workshops, such as food processing workshops, pharmaceutical workshops, laboratories, etc. Paper tube manual pallet jacks are mainly used for horizontal transportation of cylindrical objects.
You need to choose the type according to your handling needs. LIFTPAND can provide you with various types of materials handling equipment.
Description of the main parameters of the fork
The width of the selected fork depends on the size of the pallet used in daily use. The standard size of the general manual pallet jack is divided into wide truck and narrow truck. The wide truck is 685*1200mm, and the narrow truck is 550*1150mm. Of course, we have also customized hand pallet trucks with 6000mm length and 1150mm width forks for customers. You can make usage requirements of manual pallet truck, and we have professional engineers to help solve the problem’s practicability.
How to use a pallet jack
Before using the hydraulic hand pallet truck, the operator must carefully read the instructions and the notices on the truck body. Recognize the weight limit of the hand pallet truck and the approximate weight of the goods, and do not overload. Locate the finger release lever on the hydraulic pallet truck handle and toggle up to release pressure, lower the fork legs to allow forking into the pallet, push the manual pallet jack onto the pallet you want to move， then move the finger release lever on the hand pallet jack handle toward toggle down, shake the release lever up and down repeatedly to raise the load about an inch off the ground, next the finger handle is usually pulled to the middle position when pulling the manual pallet jack, this action can reduce the rebound of the piston handle Strength also helps the hydraulic pallet jack move.
Common Troubleshooting
The hydraulic hand pallet truck is simple in structure and powerful in function, so it is the most commonly used handling tool in factories, warehouses and workshops. But this simple device often has one or another defect, such as slow rise and slow fall or simply fail to rise.
When hydraulic pallet truck can’t rise up, many people think it’s broken? In fact, the situation is uncertain. In many cases, it is just gas in the oil pump of the hand pallet jack, which causes the hydraulic pressure to not rise or rise slowly! At this time, you only need to simply discharge the gas to make the manual pallet truck intact.
The method of exhaust is very simple, let us introduce to you:
Manual pallet trucks generally have three gears
- The middle is the parking gear, and the hand pallet truck will neither rise nor fall in this gear.
- To dial up is the pressure relief gear.
- To shift down is to close the oil seal to allow its hydraulic pressure to rise.We only need to dial up the gear or foot pressure relief valve, and then press the hand pallet jack handle a few times as usual. At this time, although the fork will not rise, it can effectively remove the air in the pump body. After about 10-20 presses, the air can be exhausted, make the ascent faster and stronger.
Quisque libero metus condimentum nec?
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Ut a nisl id ante tempus hendrerit. Vestibulum ante ipsum primis in faucibus orci luctus et ultrices posuere cubilia Curae; Sed aliquam, nisi quis porttitor congue, elit erat euismod orci, ac placerat dolor lectus quis orci. Donec sodales sagittis magna. Etiam vitae tortor. Maecenas vestibulum mollis diam.
Safety Precautions
- The manual hydraulic pallet truck can only be operated by one person, and one person must be in command when multiple people operate
- Overloading, unbalanced loading and single-fork operations are strictly prohibited on hand hydraulic pallet trucks, and ensure that the length of the fork is not less than the length of the pallet
- Strictly forbidden to load unstable or loosely packed goods, and if necessary, personnel support must be arranged
- Strictly forbidden to operate manual hydraulic pallet trucks on slopes. If hand hydraulic pallet trucks must be used on slopes, the operator must not stand directly in front of the hydraulic hand pallet trucks to avoid the inertia of hydraulic hand pallet trucks causing loss of control and hitting people
- Strictly forbidden to carry people on hydraulic hand pallet trucks
