Simple Introduction of The Electric Wire Rope Hoist
The wire rope electric hoist is light and small lifting equipment. It has the advantages of compact structure, lightweight, small volume, strong versatility of parts, and convenient operation.
The electric wire rope hoist can be installed on the I-beam alone or matched installed on an electric or manual single-girder, double-girder, cantilever, gantry and other cranes. With a little modification, it can also be used as a winch, which can meet the requirements of general occasions. Therefore, it is one of the most commonly used lifting equipment in factories, mines, ports, warehouses, freight yards, shops, etc. It is a must for improving labour efficiency and working conditions.
Hoist Parts Details
It is not easy to introduce all aspects of custom wood, so we have prepared a lot of information on this page for you to delve into. To make sure you can find the information you want quickly, we have prepared this content directory that will jump to the corresponding location when you click on it.
Hot Products
Hot Products
Hot Products
Hot Products
Hot Products
Hot Products
General Applications For Electric wire rope hoist
- Used in machinery factory workshops and repair shop workshops to install equipment and lift heavy objects. Used in warehouses and cargo yards for lifting, stacking, and palletizing materials. Used for lifting prefabricated components and cement pipes in the construction industry and pipeline operations. Used for lifting heavy objects in light textile industry warehouses, hospitals, shops, and food factory workshops. Used for lifting heavy objects at river terminals.
General Hot Selling Products
Praesent ac sem eget est egestas volutpat. Vestibulum dapibus nunc ac augue. Nulla neque dolor, sagittis eget, iaculis quis, molestie non, velit. Phasellus viverra nulla ut metus varius laoreet. Suspendisse nisl elit, rhoncus eget, elementum ac, condimentum eget, diam.
Mini electric hoist
- 100% copper motor, good cooling and durable
- Emergency knob for the handle
- Upper limiter
- Anti-rotary wire rope
- Longer stator and rotor
- Thickening shell
- CE certificate
- Miniature electric hoist is designed smart,easy to use.
- When the lifting things and limit is met up to stop automatically when ascension.
- If rope hoist motor, reverse ascension will stop working automatically.
- Ascension into the design of dynamic loading on the hook and static loading of two kinds of state.

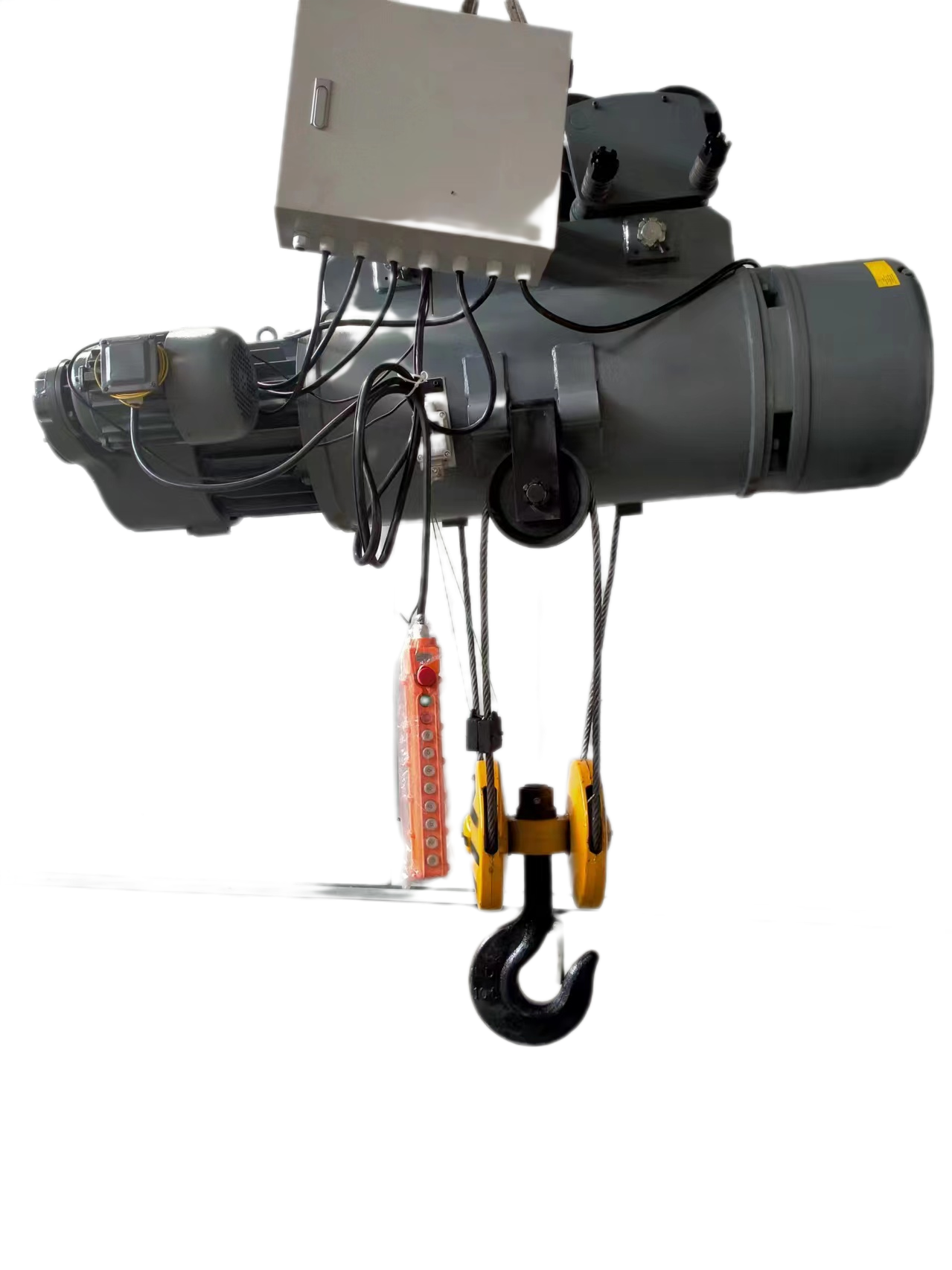

MD1 type electric hoist
Model CD and MD electric wire rope hoist have the features of compact,light, small-sized shape and smooth operation etc. advantages. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane.the gantrycrane and the slewing crane. The electric hoist model MD with double lifting speeds should be used in cases that the hoist model CD with single speed cannot meet the requirements during precision operations.

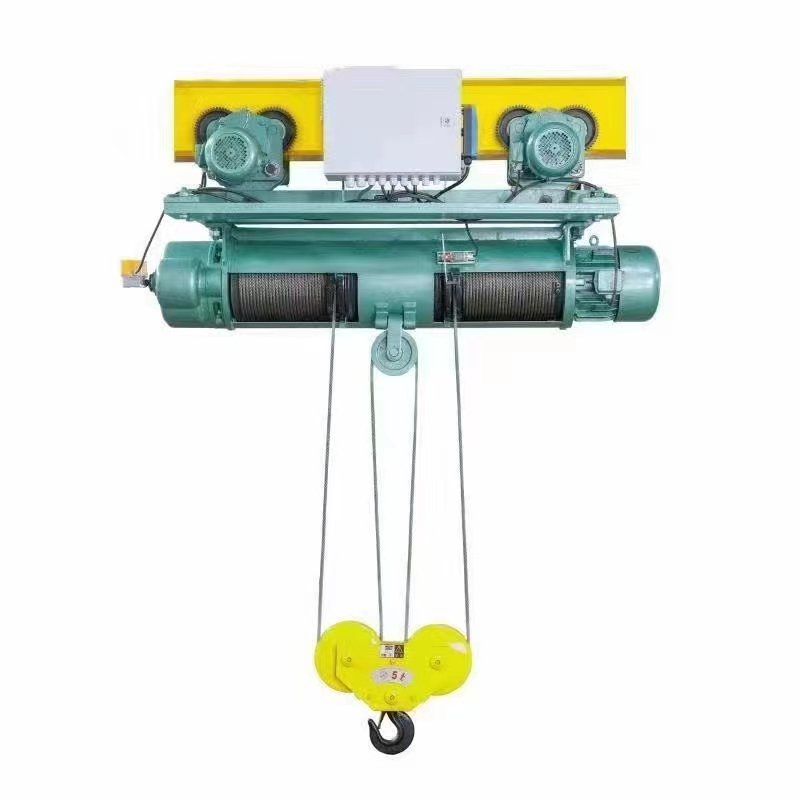

CD1 electric hoist
Model CD and MD electric wire rope hoist have the features of compact,light, small-sized shape and smooth operation etc. advantages. It can be used not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane.the gantrycrane and the slewing crane. The electric hoist model MD with double lifting speeds should be used in cases that the hoist model CD with single speed cannot meet the requirements during precision operations.
Simple introduction of the Micro electric rope hoist
Different usage of the micro electric winch
Miniature electric hoist is widely used in production lines, assembly lines, assembly machines, logistics transportation and other occasions of modern industries such as machinery manufacturing, electronics, automobiles, shipbuilding, workpiece assembly and high-tech industrial zones in different usage types.
There will be two fixed-frame rings and one bag nuts and washers in every hoist package.Customers can fix the PA hoist with one square tube.
The mini electric trolley can be used with 68-110mm I-beam.There are fours wheels and six wheels type electric trolleys for your choice.
$4,300
It is more convenient to use it in high places or other places with limited environments after being equipped with a wireless remote control device.
$1,000Every hoist from Ideahang must pass the below Quality Control
Please note that the final cost depends on the customized service you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation. Take the example of booking a tall container of products:

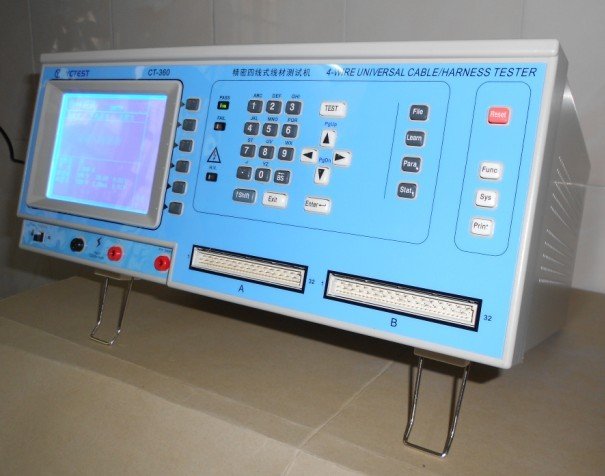

Cooper wire inspection
80% spare parts are produced in our factory. Every cooper stator has been inspected the pressure resistance.

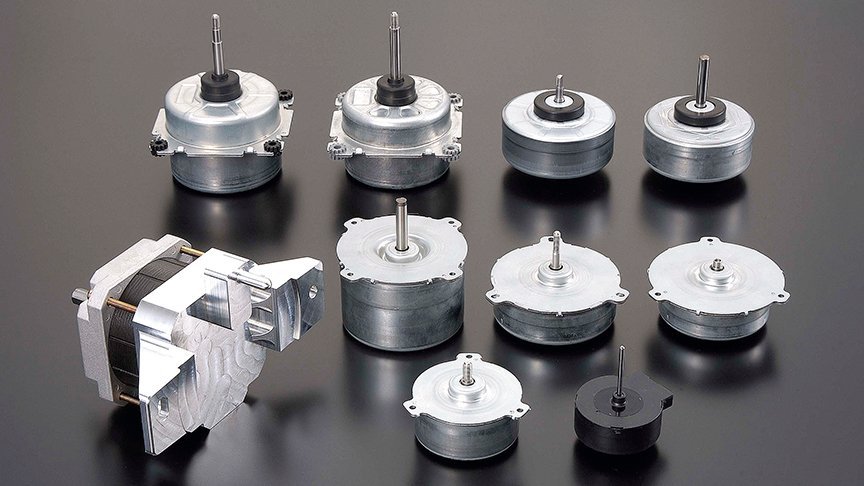

Semi-motor inspection
Every motor must pass the 1.1 times and 5 times up and down dynamic rated load test, stretching test, and fatigue test.

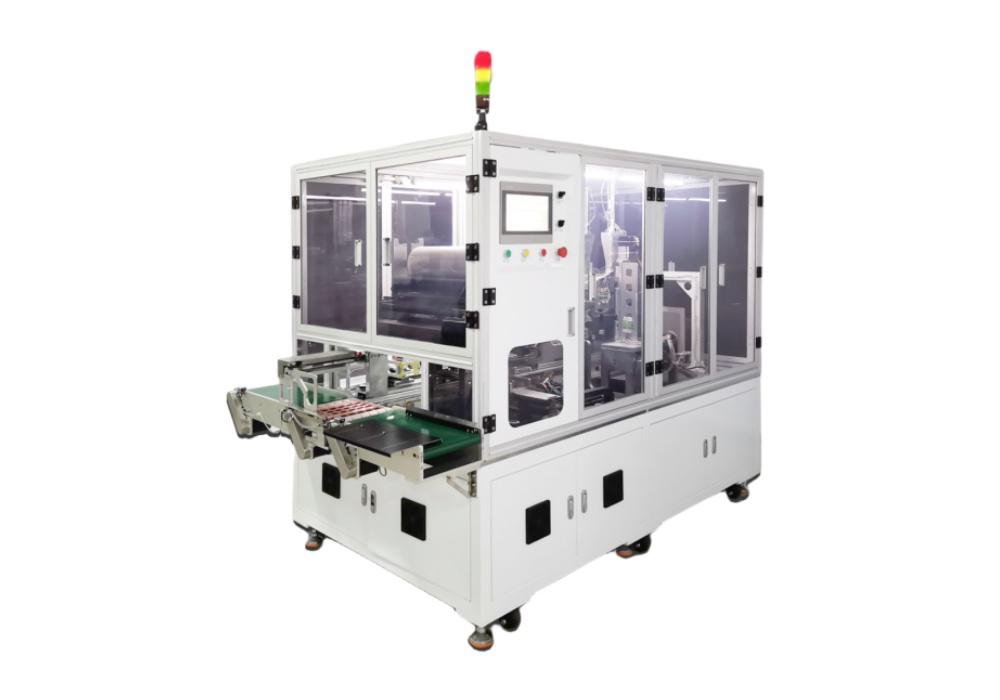

Final Motor inspection before package
Here,test the motor steering, performance, limit function, and check the appearance quality of the whole machine.
ELECTRIC HOIST MANUFACTURER FACTORY
Characteristics of the Micro Electric Wire Rope Hoist
Mini electric hoist, also named power cable hoist, electric winch permits the safe lifting of the loads around the house, workshop, restaurant or mall easily by simple switch pressing. For liftpand, the priority is safety and functionality.
- Safety
1.100% cooper motor is in high durability, power efficiency and less noisy.
2. Automatic production line, such as the rotor finishing, and stator copper wire winding ensures stable and good quality.
3.19*7 galvanized anti-rotation wire rope is in breaking strength ≥1780N/mm²,meets GB/T20118-2006
4. We choose a good power cable supplier, which has passed VDE testing and INMETRO testing.
5. With emergency stop switch and reinforced breaking switch
6. Premium forged load hook with a safety catch meets EN517
7. Every hoist has passed 1.25 times the test load before packaging.
- Functionality
- Work grade: S3-25%-10min
- For easy mounting, the equipment comes complete with double clamps.
- Every hoist has a pulley block, which increases load capacity by double.
- An automatic brake secures the load in every position.
- An automatic limit cut-out prevents the motor from overheating at the same time
Difference of CD1 & MD Electric Wire Rope Hoist
CD1 type wire rope hoist only has one lifting motor. But MD has two motors.The lifting speed of the CD1 electric hoist is normal speed, which can meet the general use requirements; the MD1 electric hoist has two kinds of lifting speeds – normal speed and slow speed. When working at a slow speed, it can meet the requirements of precision loading and unloading, sandbox mould closing, machine tool maintenance and other fine operations. Therefore, the range of use of the MD1 electric hoist is wider than that of the CD1 electric hoist.So MD1 is a little expensive than CD1.
The FAQs About Electric Wire Rope Hoist
Please note that the final cost depends on the customized service you require, the specifications of the raw materials used, the relevant national laws, and the distance of transportation. Take the example of booking a tall container of products:
What does the whole CD1 electric wire rope hoist set include?
It includes the lifting framework, travelling framework, and electric apparatus control system.
Is the electric hoist factory installed?
The electric lines are all debugged before leaving the factory. After receiving the goods, they need simple assembly and jointing of the wire ends before they can be used.Once any questions, welcome to contact us.
Is the electric hoist in stock? If customized, how long will be the delivery?
There is stock of our standard hoist. If require wire rope length above 12M, it will take about 3days. If non-standard, it will take at least one week.
